Armor X

Feature

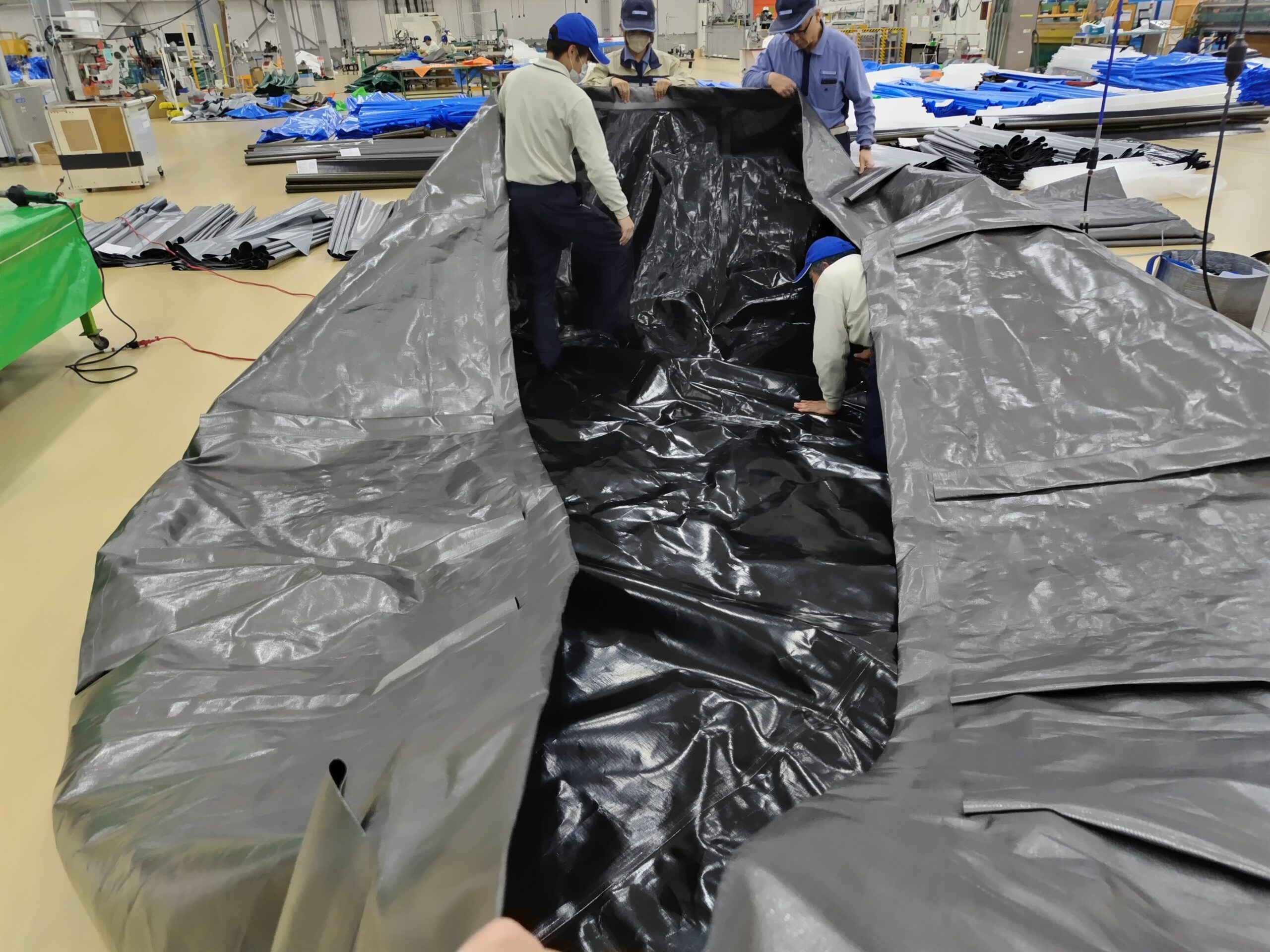

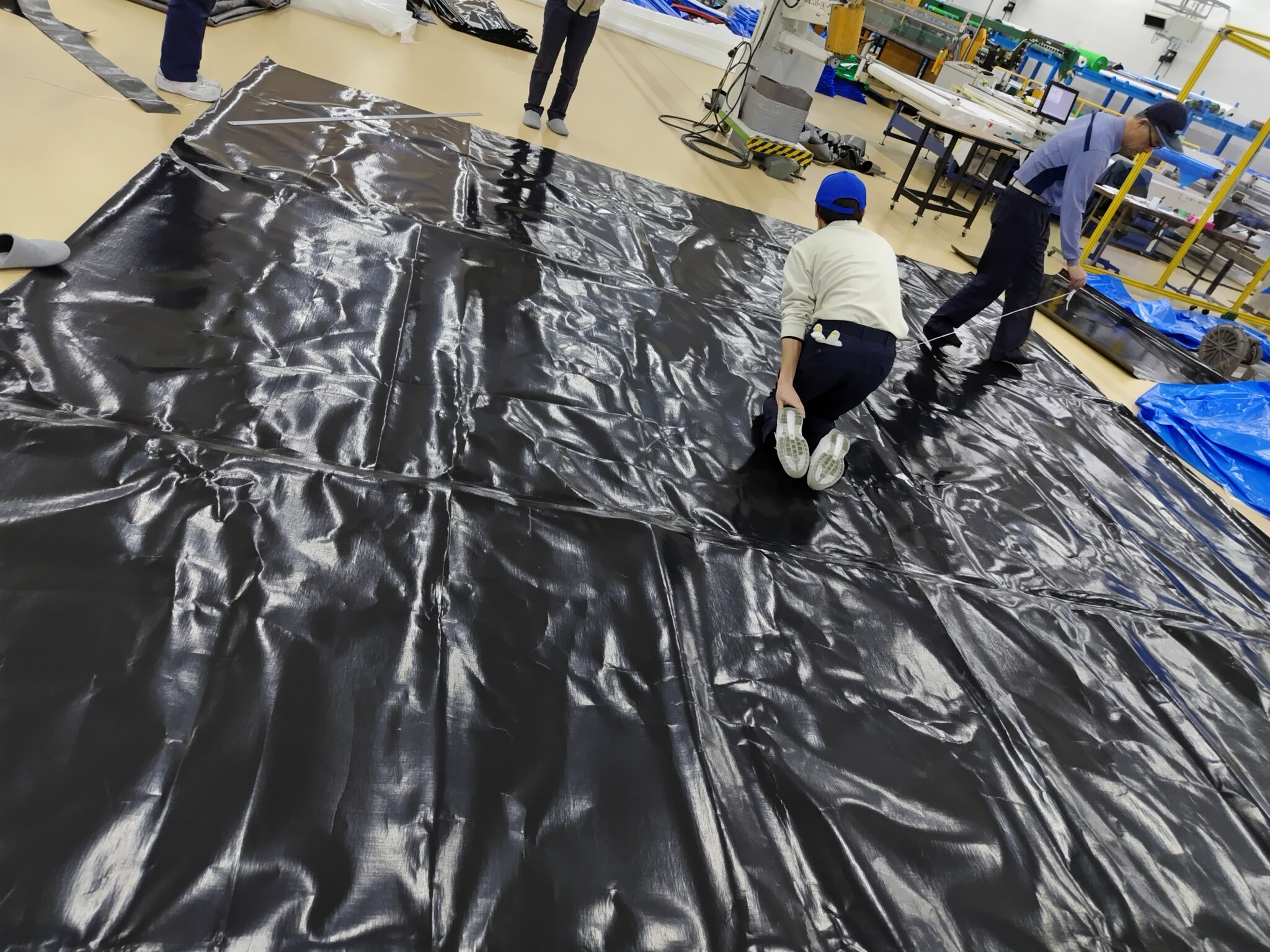

"Armor X" is a product developed to be suitable for processing water tank liners, incorporating various technologies to achieve high water resistance and improved workability during processing.
Use
Agricultural water, large industrial liners, aquaculture liners, tanks, and all other water-resistant application etc...
Material
Polyethylene
Color
Any Colors
Origin
Made in Japan

Product Information

Technical Data Sheet (PDF)

Properties

Weight 403g/m² 11.9oz/yd²
Thickness 0.58mm 23mil
Temperature Range -30℃ to + 70℃



Performance

Tensile Strength Warp 2400N/5cm (JIS 1096) 380lbs (ASTM D751)
Weft 2300N/5cm (JIS 1096) 350lbs (ASTM D751)
Elongation Warp 14% (JIS 1096) 16% (ASTM D751)
Weft 15% (JIS 1096) 16% (ASTM D751)
Tear Strength Warp 450N (JIS 1096) 130lbs (ASTM D2261)
Weft 400N (JIS 1096) 130lbs (ASTM D2261)
Puncture Strength 145lbs (ASTM D4833)
Flame Retardant Test Passed (NFPA-701)

※The above figures are measured values, not guaranteed values.
